EJOT® SDF-S plus 8UB
Termékadatok
-
Alkalmazás

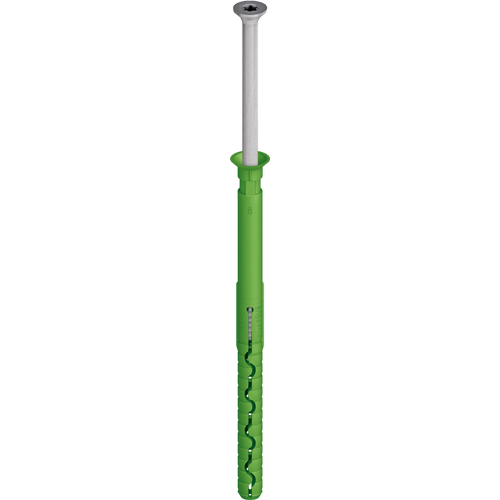

Brick slip system anchor for concrete and masonry
- For concrete, solid and perforated masonry
- Anchor tube with small countersunk head for unobtrusive installation in the joint
-
Tulajdonságok
- Approved for concrete, solid and perforated masonry (A, B, C, D)
- Anchor tube with small countersunk head for unobtrusive installation in the joint
- Torsion-proof anchor tube
- Universal expansion zone for safe anchoring
- High loads
- Anchor with increased bending moment
- Premounted screw for quick installation
- German DIBt approval: Z-21.2-589
-
Műszaki adatok
- Anchor diameter: 8 mm
- Diameter of countersunk head: 12 mm
- Drill hole depth h1 ≥: 80 mm
- Embedment depth hef ≥: 70 mm
- Screw drive: TX30
- German DIBt approval: Z-21.2-589
Characteristic loads:
Building material class A:- Normal weight concrete ≥ C 12/15 acc. to EN 206-1: 1.0 kN
- Pre-cast concrete Panel ≥ B15: 0.25 kN
Building material class B:
- Clay bricks(≥ Mz 12) acc. to DIN 105: 0.4 kN
- Solid lime sandstone (≥ KS 12) acc. to DIN EN 106: 0.4 kN
- Solid masonry of lightweight concrete (V) acc. to DIN 18152: 0.2 kN
Building material class C:
- Vertically perforated clay bricks (Hlz) acc. to DIN 105: *
- Vertical coring reference brick (Hlz) acc. to ÖNORM B 6124: 0.75 kN
- Sand-lime perforated bricks (≥ KSL 6) acc. to DIN EN 106: 0.25 kN
- Lightweight concrete hollow blocks (≥ HbL 2) acc. to DIN 18151: 0.15 kN
Building material class D:
- Lightweight aggregate concrete acc. to TGL: 0.3 kN
*According to approval to be determined throught pull-out testing at the building.
The design loads given are in accordance with the German building code. National safety factors are already incorporated. Please observe the approval.
Értékesítési pontok
Contact-ETICS | EJOT Hungary
Szűrő
Selected filters
Megnevezés | Cikkszám | Dübelátmérő mm | Hosszúság mm | Felhasználási kategóriák | Rögzítési mélység hef ≤ mm | Dübeltípus | Csomagolási egység | |
---|---|---|---|---|---|---|---|---|
EJOT SDF-S plus 8UB x 100 | 8786100460 | 8.0 | 100.0 | A, B, C, D | 70.0 | Csavaros dübel | Ezdett acél, horganyzott | 100 |
