EPPsys DR

Termékadatok

  • Overview

    • EPPsys DR features all positive assembly characteristics of the EPPsys D screw
    • Easy, subsequent attachment of EPP parts to thin-walled components
    • Easy and secure snap-fit of the mounted parts
    • Large clamping thickness range
    • Axial tolerance compensation within the clamping thickness range
    • Radial tolerance compensation
    • Weight savings due to used plastic material
    • Recyclable

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Direct assembly with snap-fit in EPP foams

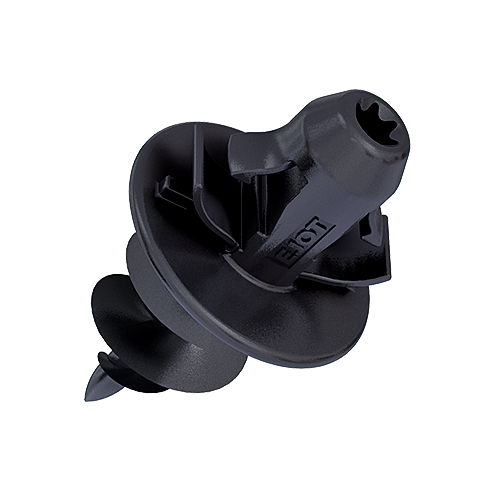

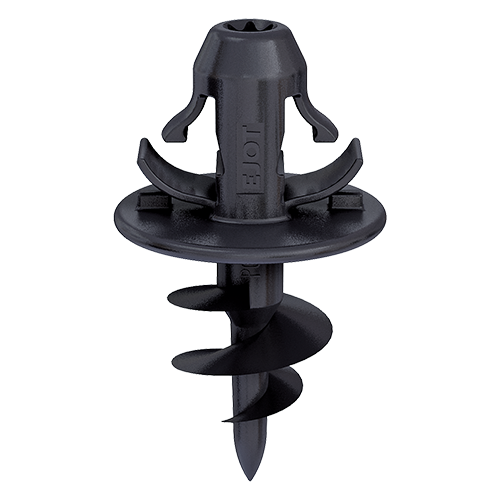

The EJOT® EPPsys DR ("Direktverschraubung" = direct assembly / "Rasthaken" = snap-fit) combines all advantages of the EPPsys D with an alternative for subsequent component attachment. Additional snap-fit hooks facilitate easy and secure fastening of thin-walled components to the EPPsys component, for example sheets or plastic parts with a wall thickness between 0.8 and 2.2 mm.
