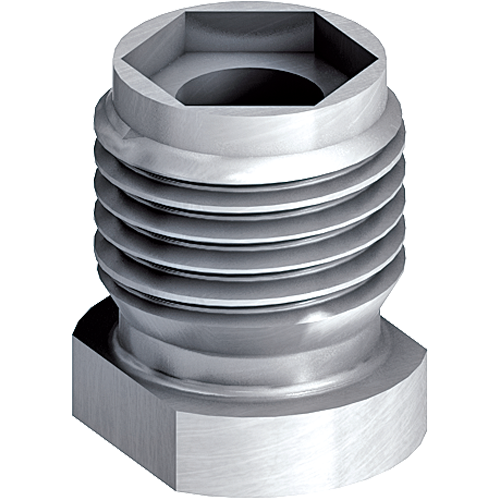

EJOT® GU threaded sleeve
Specification
-
Applications
- Can be extended to a universal scaffolding anchor GU
- Can be combined with all EJOT JA3 self-tapping screws with diameter 6.5 mm
- Can be combined with all EJOT JZ5 self-tapping screws with diameter 6.3 mm
- For ring bolts M14
-
Properties
- A2 stainless steel
- Repeat use of GU-threaded sleeve possible
-
Technical specifications
- Drive: AF 13
- Threaded sleeve: M14x1.5
Note
Effective length of universal scaffolding anchor GU + 20 mm = length of required screw
| Orderidentifier | Article Number | Material | Unit |
|---|---|---|---|
| GU threaded sleeve | 9400100300 | Stainless Steel | 500 |
