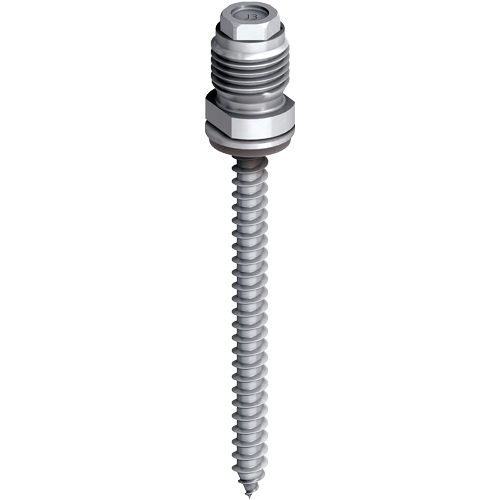

EJOT® scaffolding anchors Universal scaffolding anchor JA3-GU-6.5

JA3-GU-6,5

Specification

  • Applications

    • For installation into timber

  • Properties

    • A2 stainless steel
    • Consisting of GU threaded sleeve and JA3 self-tapping screw

  • Technical specifications

    • Diameter: 6.5 mm
    • Drive: Hexagon AF 3/8″
    • Sealing washer: E16
    • High thread: M14x1.5

    Note
    EJOT Scaffolding anchors may only be loaded in axial direction of the screw. The relevant regulations and standards have to be observed. Scaffolding anchors may not be fastened to facade cladding elements, only directly to the building or to the substructure if it is sufficiently dimensioned.

Filter

Selected filters

    Orderidentifier Article Number ø mm Effective length scaffolding anchor mm Length of self-tapping screw mm Material Unit
    JA3-GU-6.5x55-E16/2 9403611311 6.5 55.0 75.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    55.0
    Length of self-tapping screw
    75.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x55-E16/2
    Unit
    50
    JA3-GU-6.5x70-E16/2 9403911311 6.5 70.0 90.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    70.0
    Length of self-tapping screw
    90.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x70-E16/2
    Unit
    50
    JA3-GU-6.5x80-E16/2 9404011311 6.5 80.0 100.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    80.0
    Length of self-tapping screw
    100.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x80-E16/2
    Unit
    50
    JA3-GU-6.5x95-E16/2 9404111311 6.5 95.0 115.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    95.0
    Length of self-tapping screw
    115.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x95-E16/2
    Unit
    50
    JA3-GU-6.5x105-E16/2 9404211311 6.5 105.0 125.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    105.0
    Length of self-tapping screw
    125.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x105-E16/2
    Unit
    50
    JA3-GU-6.5x130-E16/2 9404411311 6.5 130.0 150.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    130.0
    Length of self-tapping screw
    150.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x130-E16/2
    Unit
    50
    JA3-GU-6.5x155-E16/2 9404611311 6.5 155.0 175.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    155.0
    Length of self-tapping screw
    175.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x155-E16/2
    Unit
    50
    JA3-GU-6.5x180-E16/2 9404711311 6.5 180.0 200.0 Stainless Steel 50

    Specifications

    ø
    6.5
    Effective length scaffolding anchor
    180.0
    Length of self-tapping screw
    200.0
    Material
    Stainless Steel
    Orderidentifier
    JA3-GU-6.5x180-E16/2
    Unit
    50
