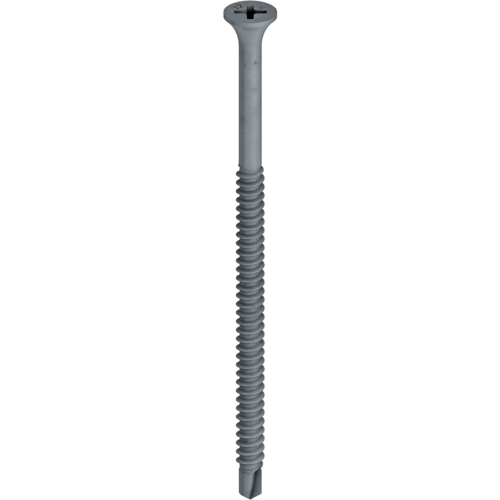

DABO® screw TKR-4-4.8

TKR-4-4,8_Pos2

Specification

  • Applications

    • To fix roofing membrane to substructures made of sheet steel ≥ 1,5 mm ≤ 4,0 mm, timber or wood-based material
    • For combination with EJOT® stress plates

  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection (15 Runden Kesternich, DIN 50018, 1997)
    • Can be delivered belted for EJOT® ECOSET installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOSET HTK installation tool.
    • With bugle head

  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 4.0 mm
    • Drive: Cross recess PH 2

    Length determination (min. lengths)

    • Sheet steel: Insulation thickness + 20 mm
    • Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Length mm Unit
    DABO TKR-4-4.8x70 3438070639 70.0 500

    Specifications

    Length
    70.0
    Orderidentifier
    DABO TKR-4-4.8x70
    Unit
    500
    DABO TKR-4-4.8x90 3438090639 90.0 500

    Specifications

    Length
    90.0
    Orderidentifier
    DABO TKR-4-4.8x90
    Unit
    500
    DABO TKR-4-4.8 x110 3438110639 110.0 250

    Specifications

    Length
    110.0
    Orderidentifier
    DABO TKR-4-4.8 x110
    Unit
    250
