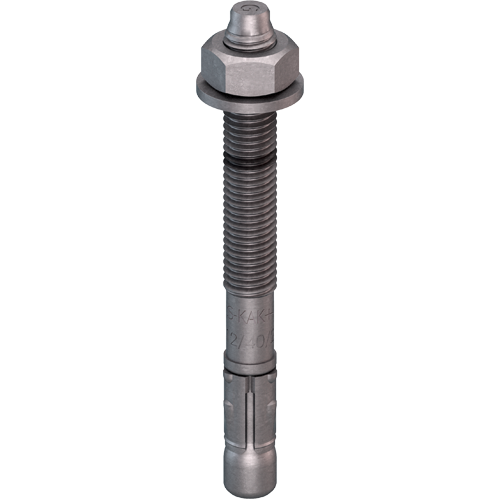

EJOT® Through Bolts BA-F Plus

Specification

  • Applications


    • For embedment in cracked and non-cracked concrete ≥ C20/25
    • Also suitable for natural stone
    • Dry indoor areas
    • For embedment of medium heavy to heavy fixings such as pillars, metal structures and wooden structures

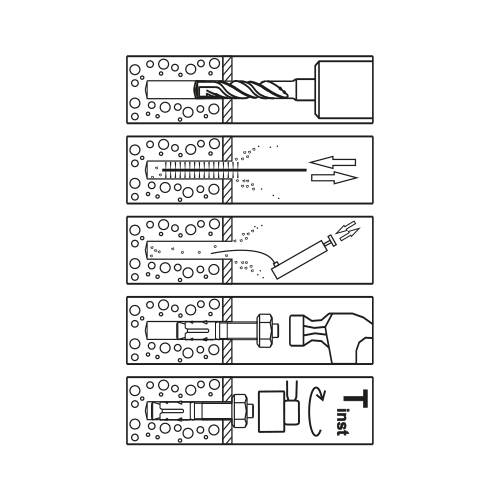

    • For pre-, push-through and distance installations


    •

    Note: Characteristic values apply to the compression strength of C20/25 concrete. Design load of an anchor for centric tension in cracked concrete.





  • Properties

    • Steel, hot dip zinc-plated
    • Approved for concrete, option 1
    • Fire resistance classes F30, F60,0 F90, F120
    • For increased corrosion protection
  • Benefits

    • Completely new design
    • M10 and M12 with 2 different anchorage depths
      M10: 40 mm and 60 mm
      M12: 50 mm and 70 mm
    • BA-F und BA-F Plus are the only hot dip galvanized anchors approved for cracked concrete
    • Colored setting depth marking on the thread
    • Anchor length letter code marked on the bolt head
    • Installation also in thinner concrete than today with M8 and M10   M8:   80 mm vs. 100 mm   M10: 100 mm vs. 120 mm
    • 30 - 50% fewer turns for the assembly torque

Filter

Selected filters

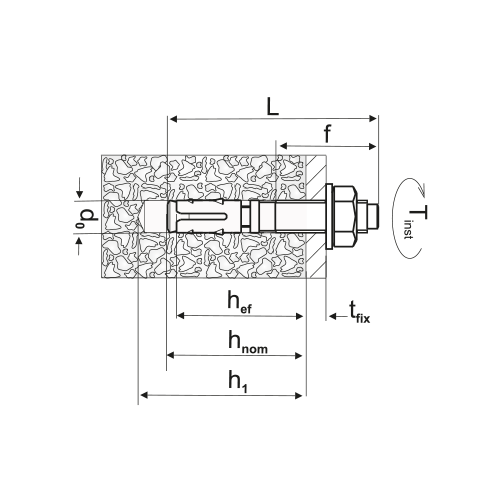

    Orderidentifier Article Number ø mm Length mm Clamping thickness

    tfix≤ mm

    Hole depth

    h1 ≥ mm

    Unit
    BA-F Plus 8/43/30 9650003312 8.0 95.0 43.0 47.0 50

    Specifications

    ø
    8.0
    Length
    95.0
    Clamping thickness

    tfix

    43.0
    Hole depth

    h1

    47.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 8/43/30
    Unit
    50
    BA-F Plus 10/10/- 9650003323 10.0 72.0 10.0 55.0 25

    Specifications

    ø
    10.0
    Length
    72.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    55.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 10/10/-
    Unit
    25
    BA-F Plus 10/30/10 9650003325 10.0 92.0 30.0 55.0 25

    Specifications

    ø
    10.0
    Length
    92.0
    Clamping thickness

    tfix

    30.0
    Hole depth

    h1

    55.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 10/30/10
    Unit
    25
    BA-F Plus 10/40/20 9650003326 10.0 102.0 40.0 55.0 25

    Specifications

    ø
    10.0
    Length
    102.0
    Clamping thickness

    tfix

    40.0
    Hole depth

    h1

    55.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 10/40/20
    Unit
    25
    BA-F Plus 10/50/30 9650003327 10.0 112.0 50.0 55.0 25

    Specifications

    ø
    10.0
    Length
    112.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    55.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 10/50/30
    Unit
    25
    BA-F Plus 12/10/- 9650003338 12.0 88.0 10.0 70.0 20

    Specifications

    ø
    12.0
    Length
    88.0
    Clamping thickness

    tfix

    10.0
    Hole depth

    h1

    70.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 12/10/-
    Unit
    20
    BA-F Plus 12/25/5 9650003340 12.0 103.0 25.0 70.0 20

    Specifications

    ø
    12.0
    Length
    103.0
    Clamping thickness

    tfix

    25.0
    Hole depth

    h1

    70.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 12/25/5
    Unit
    20
    BA-F Plus 12/40/20 9650003342 12.0 118.0 40.0 70.0 20

    Specifications

    ø
    12.0
    Length
    118.0
    Clamping thickness

    tfix

    40.0
    Hole depth

    h1

    70.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 12/40/20
    Unit
    20
    BA-F Plus 12/50/30 9650003343 12.0 128.0 50.0 70.0 20

    Specifications

    ø
    12.0
    Length
    128.0
    Clamping thickness

    tfix

    50.0
    Hole depth

    h1

    70.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F Plus 12/50/30
    Unit
    20
    BA-F PLUS 16/5 9650003357 16.0 123.0 5.0 110.0 10

    Specifications

    ø
    16.0
    Length
    123.0
    Clamping thickness

    tfix

    5.0
    Hole depth

    h1

    110.0
    Material
    Hot dip zinc plated
    Orderidentifier
    BA-F PLUS 16/5
    Unit
    10
